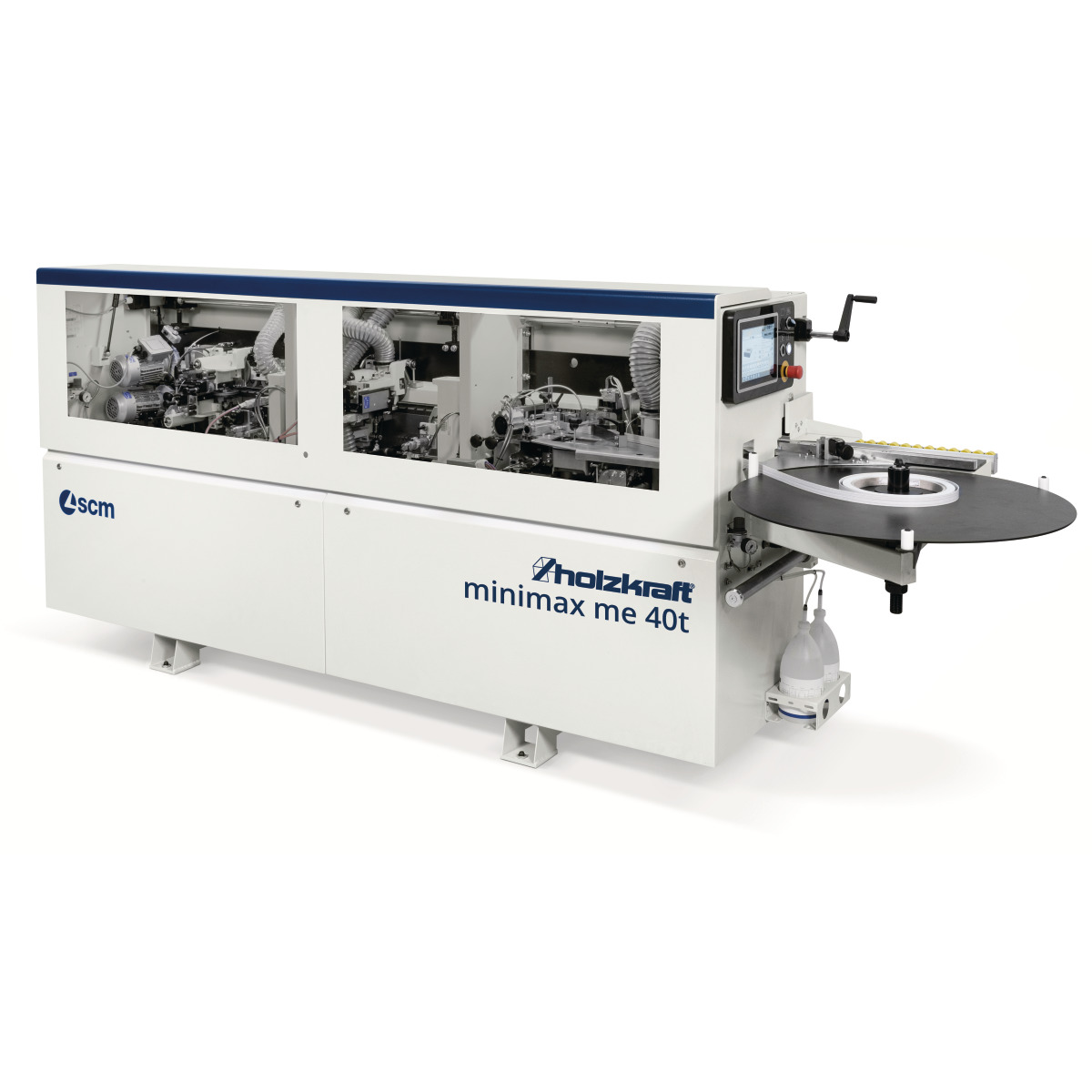

Mașină de bandare a cantului me 40 tr s a HOLZKRAFT
me 40 tr s a
Mașină de bandare a cantului me 40 tr s a HOLZKRAFT
1,219,990 mdl
In stock
- Top equipment for high productivity with a small footprint!
- Intuitive operation with the eye-S control system and 10" touchscreen :
- HMI Maestro Active Edge
- Graphic display of all processing units and their operating status
- Graphic simulation of machining operations
- Control of all processing units
- Regulation of the temperature of the glue tray
- Assistance functions for setting up the machine according to the processing program
- Fault diagnosis for quick rectification of simple faults
- Statistics on processing parameters
- USB connection
- Preparation for network connection
- Excellent accessibility to the working units thanks to the large hood, which ensures protection and noise reduction
- Automatic unit positioning when changing the panel thickness
- Panel feed via feed chain with rubber glide shoes
- Made in Italy quality
- Optimum machine management thanks to the new 10" touchscreen control panel with Maestro active edge on which all machine functions are graphically displayed
- Two slide cutters
- The glue is heated quickly and evenly by heating rods located both in the glue tray and in the glue application roller
- Automatic temperature reduction when the machine is idle for long periods
- Teflon-coated glue container for easy glue changes
- Device for recycling unused glue
- Automatic application of roll edges with cutting knife for edges up to 3 mm
- Turntable with Ø 730 mm
- Self-lubricating glue tray
- Kit for quick change of the glue container
- With tracing rollers in horizontal and vertical direction for optimum tool positioning
- Equipped with combination trimming tool Ø 55.3 mm for flush trimming edges up to 5 mm and radius edges up to 2 mm
- Precise setting via 2 digital displays
- With chip extraction
- Absolute cleanliness for the perfect finish of the surfaces on the workpiece surface
- With rotating copying device
- Driven by two independent swivel and height-adjustable motors
- For perfect cleaning and polishing of panel edges
- With numerical position indicator
- For perfect finishing of plastic edges
- With device for resetting the unit when it is not needed
- For the automatic application of strip edges
- Solid wood strip edgebands are loaded automatically and synchronized with the panel guide
- Enables gluing and grooving of the workpiece in one pass
- Installation only possible as an alternative to buffing unit 5514560
- For trimming the edge and for radius routing on the top and bottom sides
- When edgebanding solid wood edges, the radius router is used for trimming
- High-frequency motor with 12,000 rpm; saw blade Ø 125 mm Z12
- For pre-cleaning the panel surface and edge for more effective cleaning
- For trimming protruding edges
- For rounding the edges
- High-frequency motor with 12,000 rpm; cutter Ø 58 mm Z4
Equipment details
10" touchscreen control panel
Pre-milling unit
Glue station
Flush radius trimming unit
Surface scraper
Buffing unit
Radius scraper
Edge magazine
Optionally available: Grooving unit
Trimming unit (me 40 tr s)
Spraying device for finishing the edge
Snipping unit (me 40 tr s)
Rounding unit (me 40 tr s)
Manufacturer
SCM Group S.p.A Div. MINIMAX
Via Casale 450, 47826 Villa Verucchio (RN), Italy
